Clear Perspex Cast Acrylic Light Guide Panel Laser Dot UV Printing
Clear acrylic light guide plate perspex LED laser dot plastic light
panel
1. Product Description

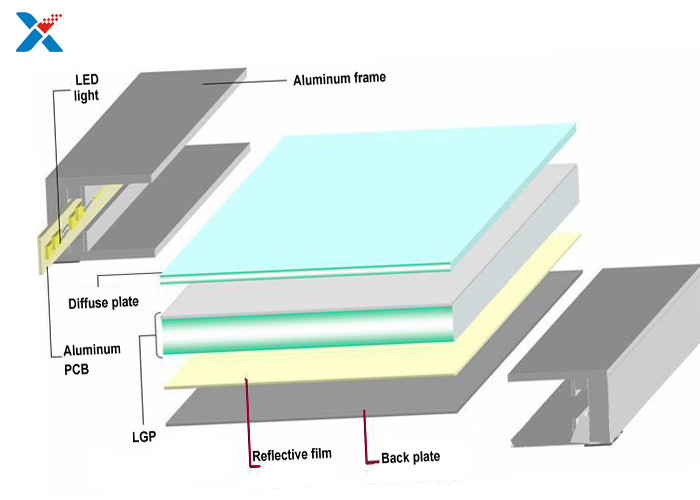

The light guide plate is made of optical grade acrylic, and then
uses high-tech materials with extremely high refractive index and
no light absorption. Printing technology prints light guide points.
The optical-grade acrylic sheet is used to absorb the light emitted
from the lamp and stay on the surface of the optical-grade acrylic
sheet. When the light hits each light guide point, the reflected
light will spread to all angles, and then destroy the reflection
conditions and be emitted from the front of the light guide plate.
Through various light guide points of different density and size,
the light guide plate can be made to emit light uniformly. The
purpose of the reflective sheet is to reflect the light exposed on
the bottom surface back into the light guide plate to improve the
use efficiency of light; under the condition of the same area of
luminous brightness, the luminous efficiency is high and the power
consumption is low. The single-sided microstructure array light
guide plate generally adopts the manufacturing process of extrusion
molding.
2. Parameter
| Clear acrylic sheet perspex LED light guide panel |
| Item | Place of Origin | Guangdong China |
| Brand Name | XH (Acrylic sheet manufacturer) |
| Model Number | XH 00 |
| Material | High quality Virgin MMA raw material |
| Specification | Thickness | 0.8mm-20mm |
| Acrylic sheet Size | 2440x1220mm, 1220*1830mm, customized |
| Density | 1.2g/cm3 |
| Appearance | Color | Red or customized |
| Surface | Double Polished |
| Process Available | Processing Type | Cast |
| Process Service | Custom Cut to Size,laser dot,UV printing |
| Sample | Sample fee | Normal A4 size is free, just shipping fee |
| Sample Time | Normal size, 2days |
| Customized sample | Fee and time will be discussed by both |
| Supply Capacity | Production Ability | 50000 Pieces per Month |
| Stock | Regular size stock is sufficient |
| Lead time | 7-10 days after your order |
| Package | Acrylic sheet | Covered by PE film or craft paper on double sides |
| Package | Wooden pallet |
| Package size | 2450mm*1250mm*700mm or customized |
| Package weight | About 2000kg per pallet or customized |
| Trading Terms | MOQ | 50 Pieces |
| Main Market | All over the world |
| Shipping Port | Shenzhen/Guangzhou Port by Sea |
| Transportation | By sea/ Air/ Express/Railway |
| Trading Terms | FOB, EXW, CIF, CNF, FCA |
| Payment Terms | T/T,Western Union, Paypal |
| Using Tips | Storage | Far away from organic solvents |
| Scratching | Sharp objects may scratch the surface |
| Temperature | Long time less than 85℃ |
| Cleaning | Clean with soft cloth or scrub with soap |
3. Acrylic sheet features:
1. Complete physical molding, environmental protection, no silk
screen ink
2. The photoelectric conversion rate can reach 80%-90%.
3. High uniformity (90%), laser dots are individually designed for
each specification
4. Durable, no light decay, long life, more than 8 years of normal
indoor use
5. High weather resistance, more suitable for the harsh climatic
conditions of export regions and regions
6. High production efficiency and short lead time. Using imported
laser spotting machine, the daily output is 3-5 times that of
general light guide plate manufacturers
7. Superior stability. The raw materials of the light guide plate
are stable, the production documents are stable, and the machine
production is stable
4. Acrylic sheet Application
The light guide plate ultra-thin light box is a new type of
advertising carrier (the industry calls it "ultra-thin light box",
which is inspired by LCD TVs and draws on the backlight technology
of LCD TVs. In fact, it is not a light box. ” is more appropriate,
and its characteristics are as follows:
1. The appearance is beautiful, and its thickness is generally less
than 3 cm, which maximizes the utilization of space, beautifies the
environment, and broadens the scope of application.
2. The bright light output is completely flat and almost perfectly
uniform, completely eliminating the light and dark light marks
common to ordinary light boxes. Its excellent optical properties
are not only widely used in public places, but also expand its
application in high-tech fields such as precision display,
photography and medical viewing, scientific research, and
high-standard lighting. The effect is comparable to that of liquid
crystal displays.
3. Its other commendable advantage is energy saving. Due to the use
of advanced light guide plate lighting technology, the power
consumption is only 23% of the ordinary light box with the same
screen area. Calculated on the basis of 10 hours of electricity
consumption per day for a light box with a screen area of 1M2,
the annual power consumption of ordinary light boxes is nearly 900
kWh, and the annual power consumption of ultra-thin light boxes is
only 200 kWh, saving 77% of electricity.
4. The special high-brightness and high-quality fluorescent lamp
used in the ultra-thin light box has an average service life of
more than 8,000 hours; the average service life of the special
cold-cathode lamp is more than 15,000 hours. The life of the lamp
used in the ultra-thin light box is 5 to 10 times that of the
ordinary lamp. The extended service life significantly saves
maintenance costs.
5. The ultra-thin light box widely adopts imported high-quality
aluminum alloy open-type overall frame structure, equipped with
movable hooks or hanging holes, which makes light box installation
and screen replacement simple and fast, saving labor, time and
money.
5.XH Company and Production Line
7.Package and shipping
7.1. One piece of acrylic sheet package: double-sided covered with
kraft paper or PE film, the cover film does not have any LOGO of
our company.
7.2. Tray package: the total weight of each pallet is about 2 tons,
the bottom is wooden pallet or iron pallet, and the surrounding is
packed with corrugated paper.
7.3. The packaging method of the whole container: 20-23 tons (about
3000 pieces) 20-foot container, 10-12 pallets.
